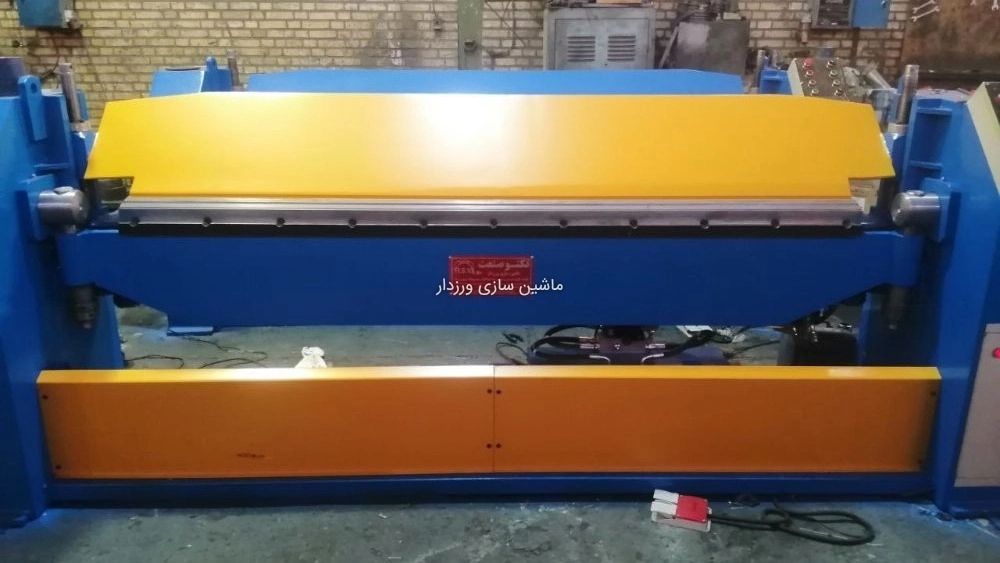

What is a Bending Machine?
A bending machine, also known as a bender, is a tool designed for shaping and bending various materials, particularly metals. By applying force, this machine bends materials into desired angles and forms, making it widely used in industries such as automotive, construction, metal parts manufacturing, and furniture production. Bending machines come in different types, including manual, hydraulic, electric, and CNC (Computer Numerical Control), each suited to specific project requirements and precision levels.
The primary function of a bending machine relies on mechanical or hydraulic pressure, which is exerted through specialized dies and tools onto the material. For instance, in sheet metal bending machines, a metal sheet is placed between two jaws or dies, and the machine presses it into the desired shape. This process enables manufacturers to produce complex components with high accuracy and cost-efficiency.
The advantages of using a bending machine include increased production speed, reduced material waste, and the ability to create a variety of shapes. However, selecting the right machine depends on factors such as material thickness, type, and design complexity. In more advanced models like CNC bending machines, computer programming enhances precision and repeatability while minimizing human error.
Ultimately, the bending machine stands as a critical piece of equipment in modern industry, significantly contributing to improved production efficiency and product quality.
CNC Bending Machines
CNC bending machines, or Computer Numerical Control bending machines, are advanced tools used to bend and shape materials, primarily metals, with exceptional precision and efficiency. These machines utilize computer programming to control the bending process, allowing for highly accurate and repeatable results. They are widely employed in industries such as aerospace, automotive, electronics, and metal fabrication, where complex and consistent shapes are required.
How CNC Bending Machines Work
CNC bending machines operate by feeding a digital design or program into the system, which then directs the machine’s movements. The material, typically a metal sheet or tube, is positioned between specialized tools, such as a punch and die. The machine’s computer-controlled system adjusts the force, angle, and position of the tools to bend the material precisely according to the programmed specifications. This automation eliminates much of the manual adjustment required in traditional bending methods, reducing errors and setup time.
Key Features and Advantages
Precision: CNC technology ensures that every bend matches the exact measurements specified in the design, making it ideal for high-tolerance applications.
Repeatability: Once a program is set, the machine can replicate the same bend consistently across multiple pieces, ensuring uniformity in mass production.
Versatility: These machines can handle a wide range of materials (e.g., steel, aluminum, copper) and thicknesses, as well as complex geometries.
Efficiency: Automated operation speeds up production and reduces labor costs, as the machine requires minimal human intervention after programming.
Reduced Waste: The precision of CNC bending minimizes material overuse and errors, leading to less scrap.
Applications
CNC bending machines are used to create components like brackets, enclosures, frames, and pipes. For example, in the automotive industry, they produce parts such as exhaust systems and chassis components. In construction, they help fabricate structural elements like beams and supports.
Limitations
While highly effective, CNC bending machines come with a higher initial cost compared to manual or hydraulic alternatives. They also require skilled operators to program and maintain them, which may add to operational expenses. Additionally, they are best suited for medium to high-volume production rather than one-off projects due to the setup time involved in programming.
Conclusion
CNC bending machines represent a pinnacle of modern manufacturing technology, combining automation with precision to meet the demands of contemporary industries. Their ability to produce intricate, high-quality parts efficiently makes them indispensable in today’s competitive production landscape
CNC Programming Details for Bending Machines
CNC (Computer Numerical Control) programming is the backbone of operating CNC bending machines. It involves creating a set of instructions that the machine follows to bend materials with precision and consistency. This process bridges the gap between a digital design and the physical bending operation, requiring both technical knowledge and attention to detail. Below are the key aspects of CNC programming for bending machines.
1. Basics of CNC Programming
CNC programming uses a language, typically G-code or M-code, to communicate instructions to the machine. These codes control movements, speeds, tool positions, and other parameters. For bending machines, the program dictates:
Bend Angle: The degree to which the material is bent.
Bend Length: The length of the material segment being bent.
Tool Selection: The specific punch and die combination used.
Material Positioning: Where the material is placed and how it moves during the process.
The programmer inputs these commands either manually or through CAM (Computer-Aided Manufacturing) software, which generates the code from a CAD (Computer-Aided Design) file.
Steps in CNC Bending Programming
Programming a CNC bending machine typically follows these steps:
a. Design Creation
A 2D or 3D model of the part is created using CAD software (e.g., SolidWorks, AutoCAD).
The design includes all dimensions, bend angles, and tolerances.
b. Material Specification
The programmer specifies the material type (e.g., steel, aluminum), thickness, and properties (e.g., tensile strength), as these affect bending behavior.
For example, thicker or harder materials may require more force or a larger bend radius.
c. Tooling Selection
The appropriate punch and die are chosen based on the material and bend requirements. For instance, a V-die is common for simple bends, while complex shapes may need custom tools.
The program includes tool setup instructions for the machine.
d. Bend Sequence Planning
The order of bends is critical, especially for parts with multiple bends. The programmer ensures the sequence avoids tool collisions and maintains accessibility.
Simulation software is often used to visualize the process and detect potential issues.
e. Code Generation
Using CAM software (e.g., Mastercam, Radan), the design is converted into G-code. Example commands:
G01 X50 Y20: Move the tool to a specific position.
M03: Start the bending operation.
G90: Set absolute positioning mode.
Some modern CNC bending machines have proprietary software that simplifies this step.
f. Simulation and Testing
The program is tested virtually or on the machine with a trial run to verify accuracy and identify errors (e.g., over-bending or material springback).
Adjustments are made as needed, such as compensating for springback (the tendency of metal to partially return to its original shape after bending).
g. Execution
The finalized code is uploaded to the CNC bending machine’s controller, and production begins.
Key Programming Considerations
Springback Compensation: Metals exhibit elasticity, so the bend angle in the program may need to be slightly overstated (e.g., programming a 92° bend to achieve a 90° result).
Bend Allowance: The programmer calculates the extra material length required for bending, based on factors like thickness and radius.
Feed Rate: The speed at which the material is fed or the tool moves, adjusted to avoid damage or deformation.
Back Gauge Positioning: The back gauge (a mechanical stop) is programmed to position the material accurately for each bend.
Safety Parameters: Limits are set to prevent the machine from exceeding its capacity or damaging tools.
Example of G-Code for a Simple Bend
Here’s a simplified G-code snippet for bending a metal sheet at a 90° angle:
N10 G90 ; Set absolute positioning N20 T01 M06 ; Select Tool 1 (specific punch/die) N30 G00 X0 Y0 ; Move to starting position N40 G01 Z-10 F50 ; Lower punch 10mm at feed rate 50 N50 G01 Z0 ; Return punch to initial position N60 M30 ; End program
This is a basic example; real-world programs are more complex, incorporating multiple bends and machine-specific commands.
Software and Tools
CAD/CAM Software: Tools like Fusion 360, Siemens NX, or Trumpf TruTops streamline design and code generation.
Machine-Specific Interfaces: Many CNC bending machines (e.g., Amada, Bystronic) come with built-in programming interfaces that simplify input for operators.
Simulation Tools: Software like BendSim or VisiBend predicts outcomes and optimizes programs before production
Challenges in CNC Bending Programming
Material Variability: Inconsistent material properties (e.g., thickness variations) can affect bend accuracy.
Complex Geometries: Parts with multiple bends or irregular shapes require meticulous planning.
Operator Skill: Effective programming demands an understanding of both the machine and the material science behind bending.
Conclusion
CNC programming for bending machines transforms a conceptual design into a precise physical product. By leveraging G-code, advanced software, and careful planning, programmers ensure that the machine delivers consistent, high-quality bends tailored to specific requirements. Mastery of this process is essential for maximizing the capabilities of CNC bending technology in modern manufacturing
